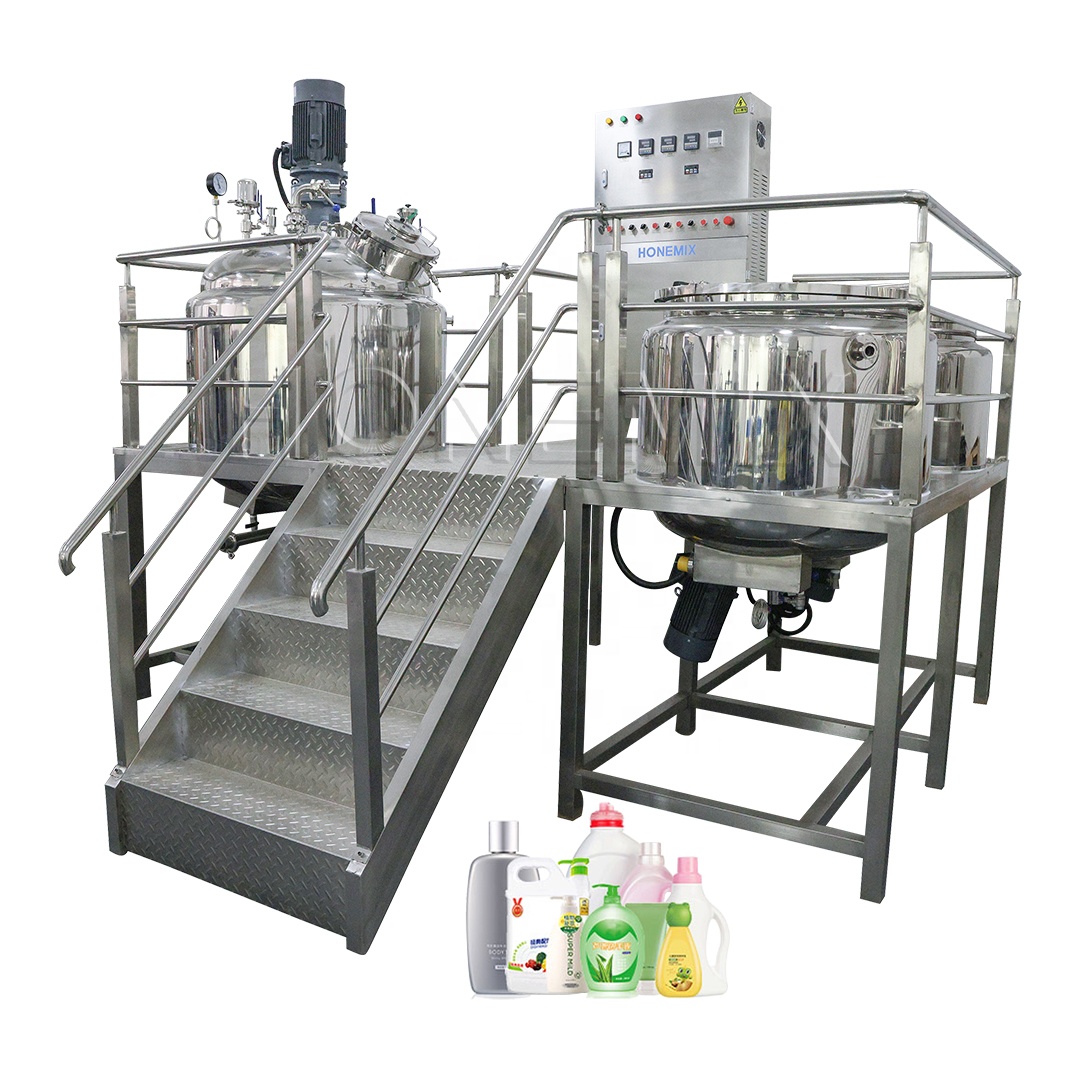

HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
1 / 5
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale
HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale

HoneMix Cosmetics Machinery Body Scrub Lotion Making Production Line Cosmetic Emulsifying Mixer Equipment for Sale

Send Inquiry

Product Description

Emulsifying Mixer Banner 1
Emulsifying Mixer Banner 2
Emulsifying Mixer Showcase
Mixer System Detail

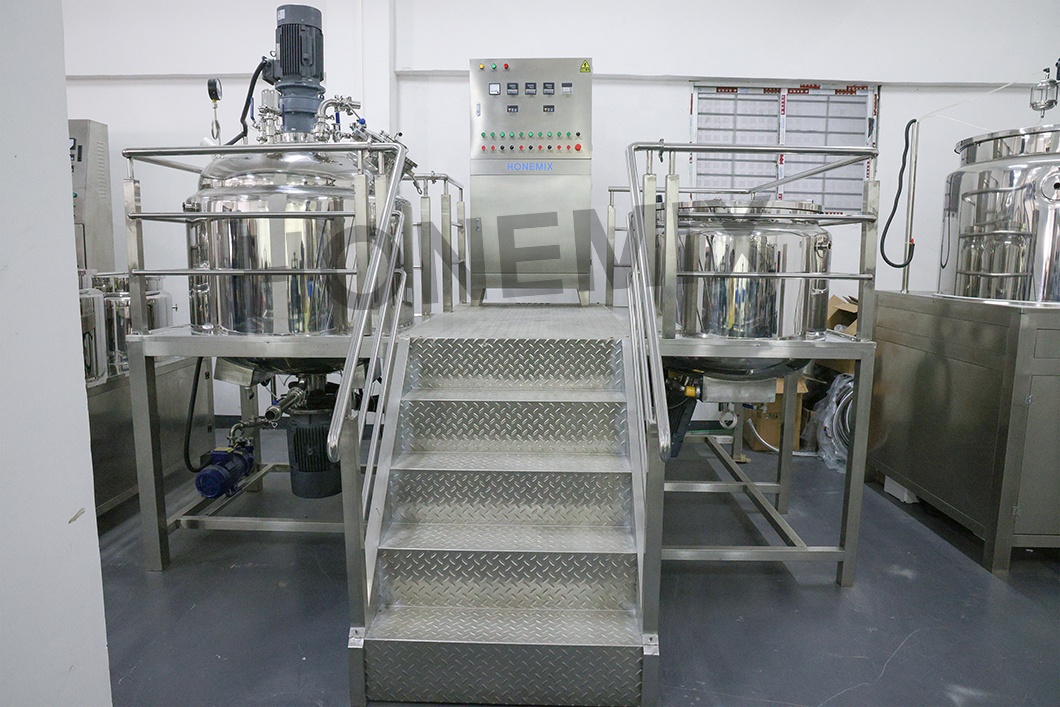

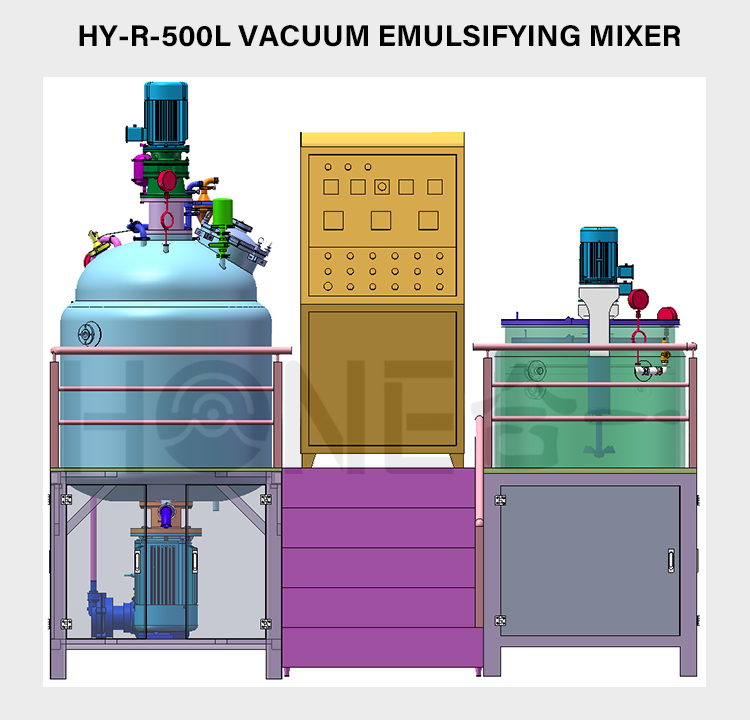

Fixed Type Vacuum Emulsifying Mixer Machine
Fixed Type Vacuum Emulsifying Mixer
Production Detail 1 Production Detail 2
Capacity (L) Wall Scraper Mixer Homogenizer Water and Oil Pot (L) Disperser
100 1.5KW, 0~65RPM 4KW, 0~3600RPM 90/60 0.55/0.55KW
200 3KW, 0~65RPM 5.5KW, 0~3600RPM 180/120 0.75/0.75KW
300 4KW, 0~65RPM 7.5KW, 0~3600RPM 270/180 1.1/1.1KW
500 5.5KW, 0~65RPM 11KW, 0~3600RPM 450/300 1.5/1.5KW
Mixer Blueprint

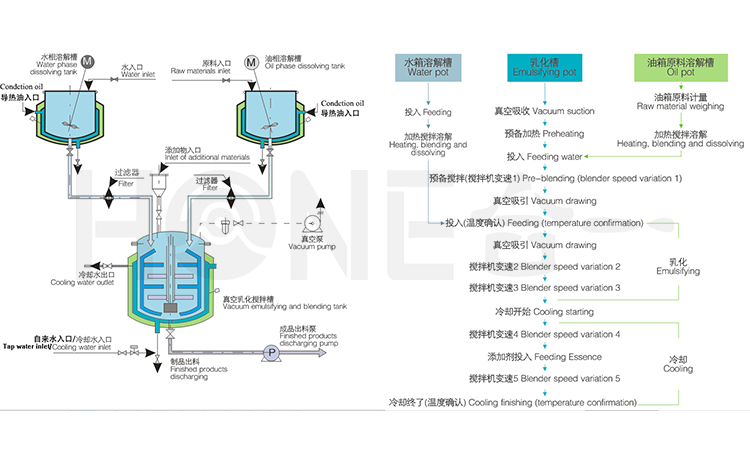

Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system, Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.

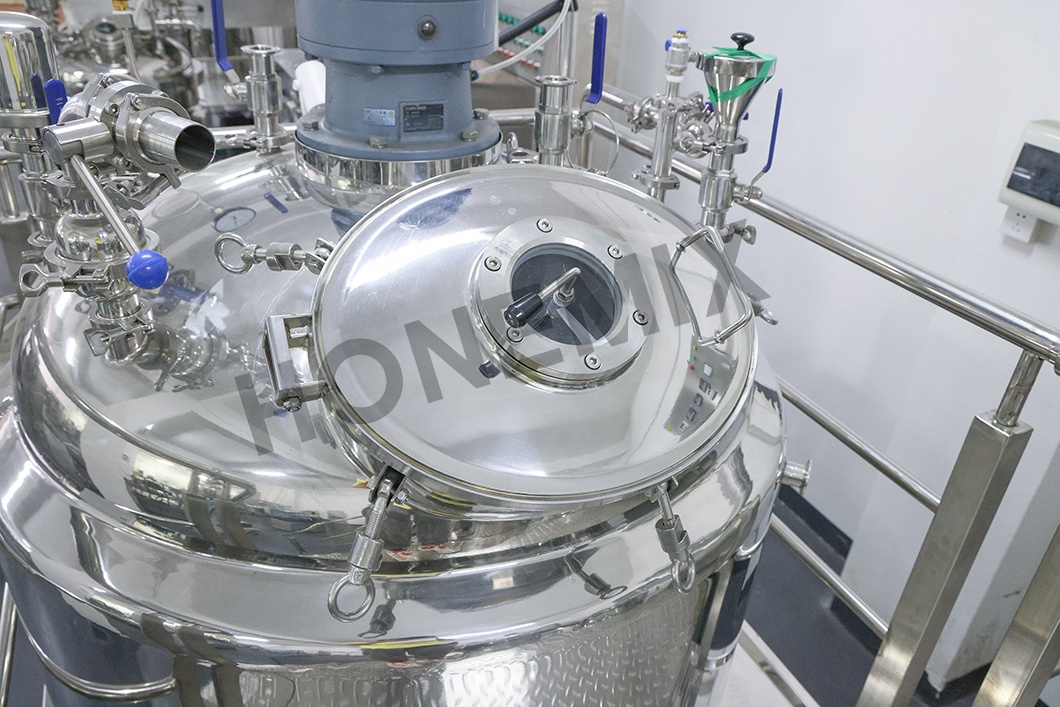

Lid Part
  • Excellent sealing structure
  • Equipped with suction port and sight window light
  • Features window sight glass, vacuum meter, and air filter
  • Integrated manhole for easy monitoring and access
Lid Part Details

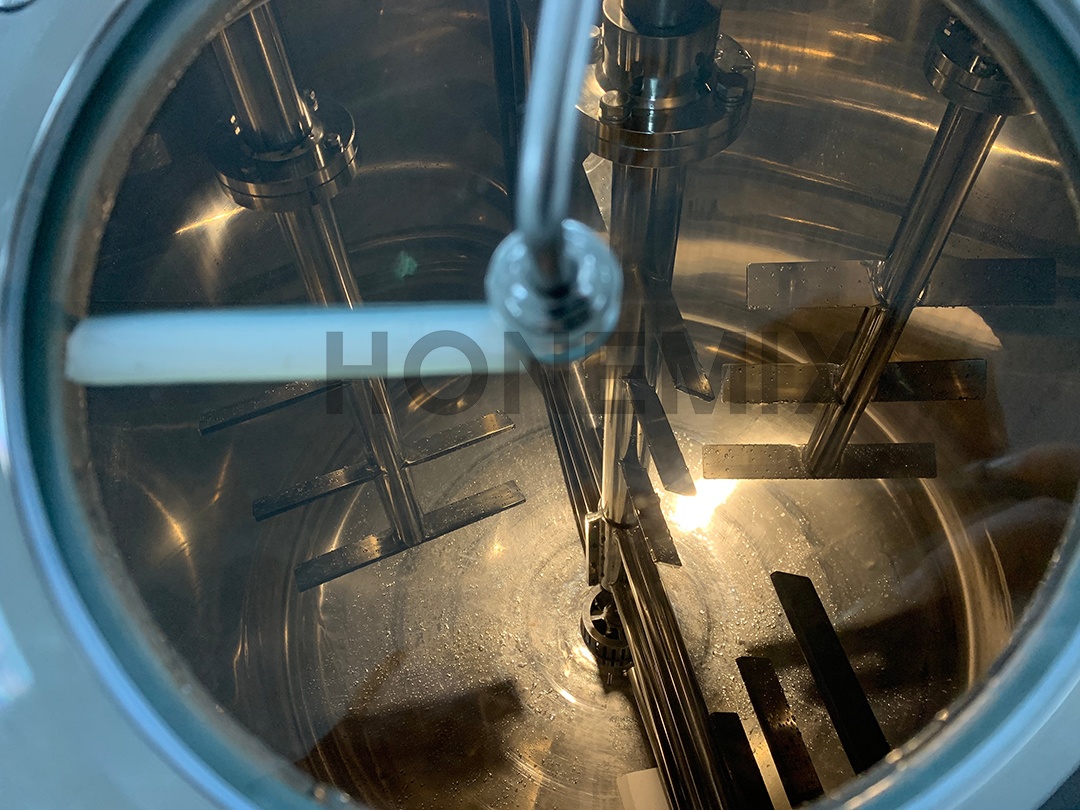

Frame Wall Scraper Mixer
  • SUS316L Wall scraper mixer
  • High efficiency PTFE scraper
  • Fixed propeller design
  • 45-degree blades on opposite angles to ensure complete mixture
  • Siemens motor drive configuration
  • 0-65rpm with variable speed control
  • Two-way wall scraper mixer system
  • Helix scrape mixer (Option available)
Frame Wall Scraper Mixer Details

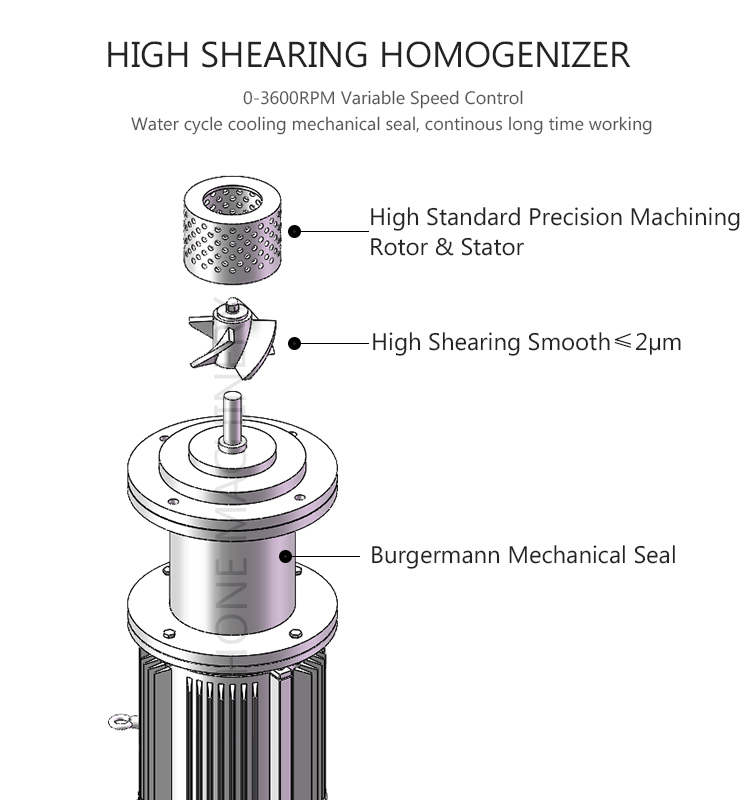

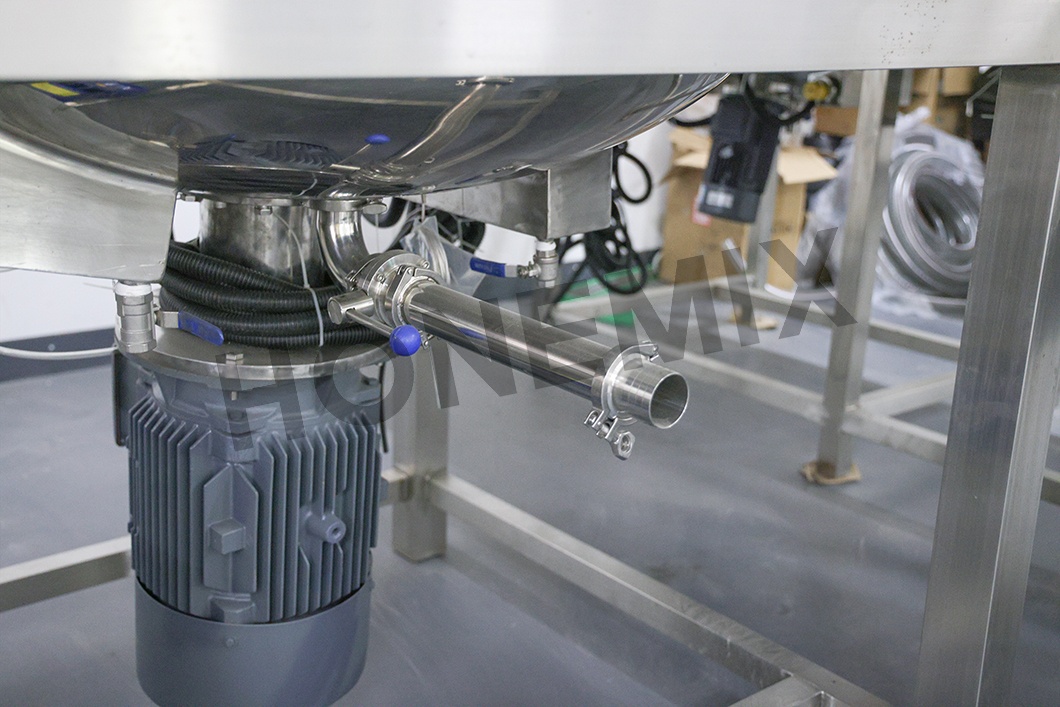

Homogenizer & Discharge
  • SUS316L high-grade contact parts
  • Siemens / ABB motor options available
  • High Shear Homogenizer with 0-3000rpm operating speed
Homogenizer and Discharge Details

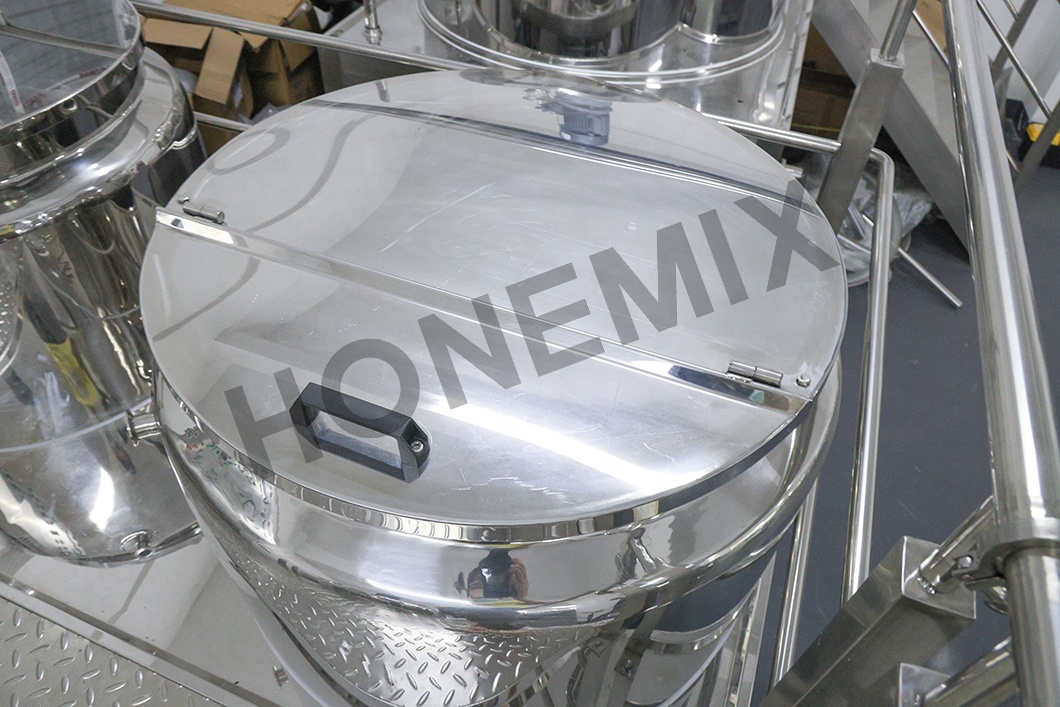

Water and Oil Pot
  • Machine equipped with a set of water and oil pots
  • Water pot capacity: 240L
  • Oil pot capacity: 150L
  • Power system: 0.75KW Siemens motor operating at 1440RPM
  • Electric heating supported by water or conduction oil
  • Mixing: High shearing disperser plates with baffle on the wall
  • Half-open hinged lid design for easy and safe operation
Water and Oil Pot Details

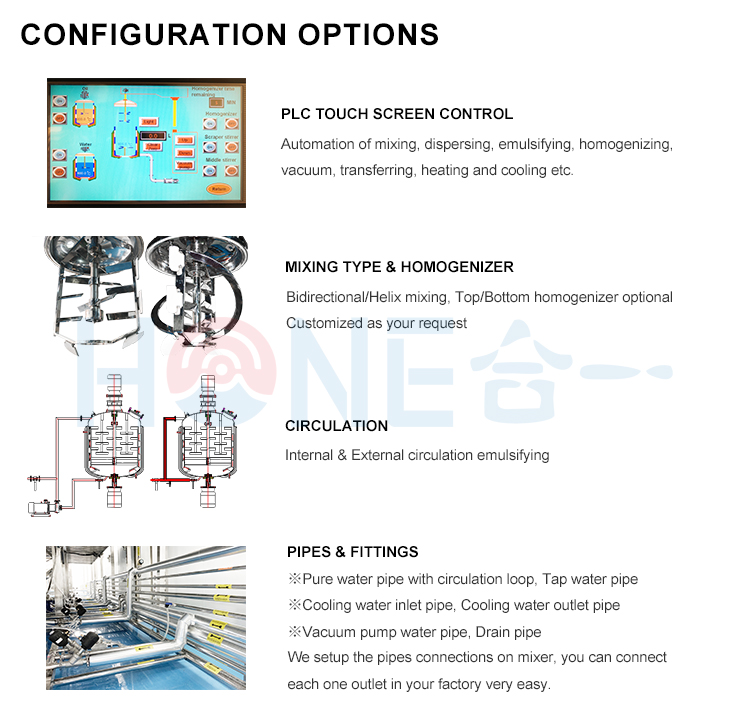

Equipment Detail A Equipment Detail B Equipment Detail C
Component Showcase A Component Showcase B Machine Profile View

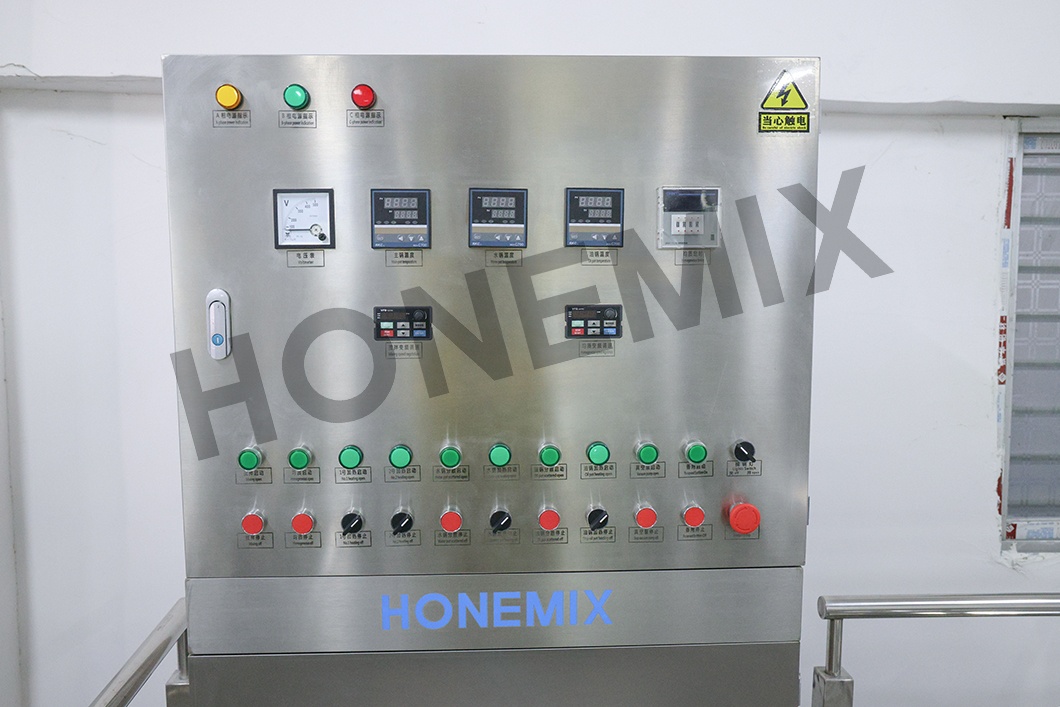

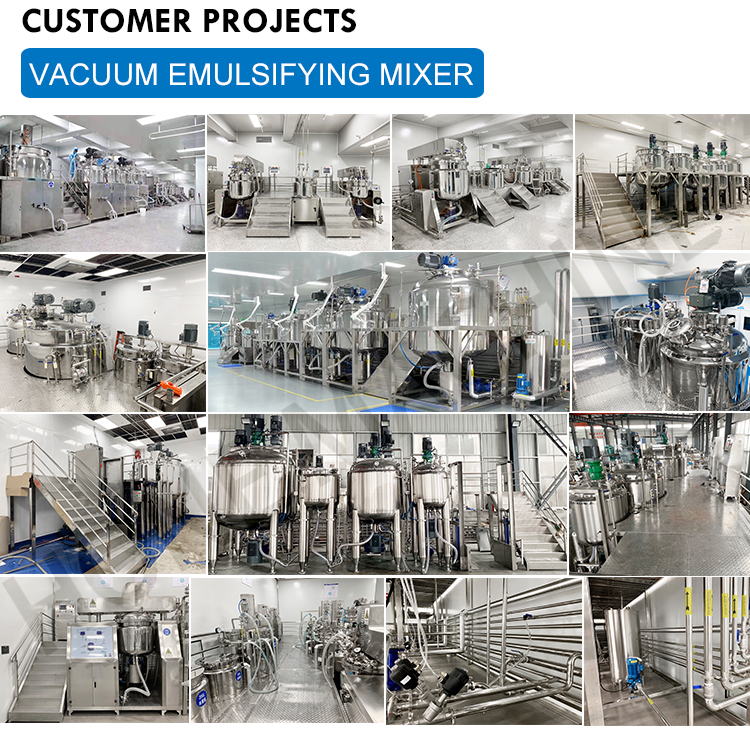

Internal Tank View Main Control Board Technical Layout Setup

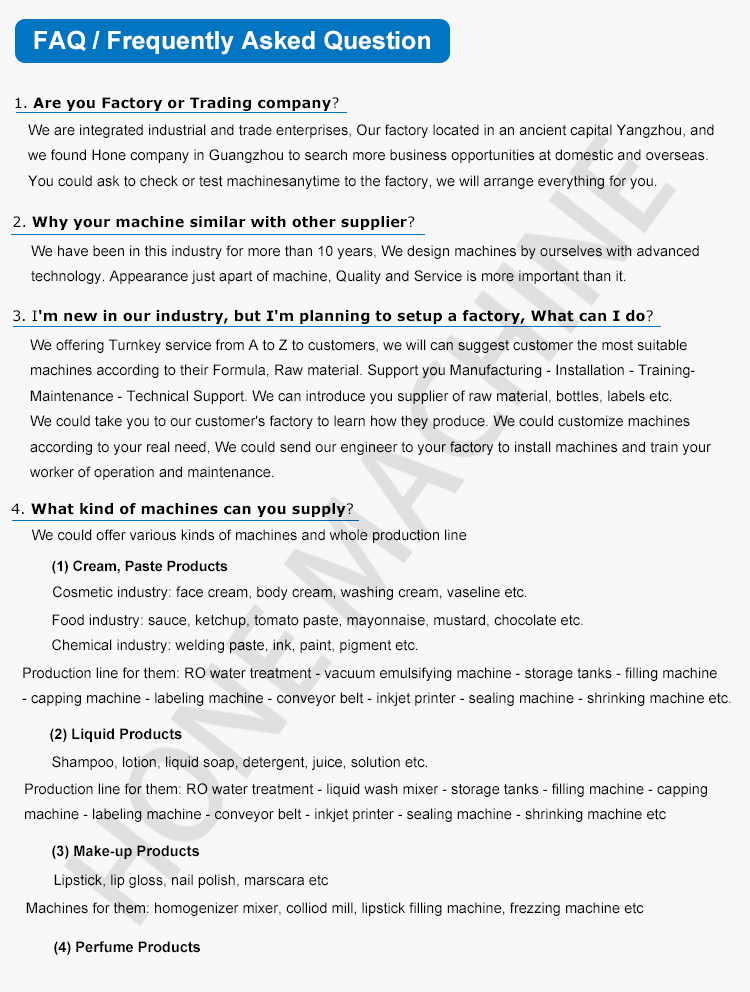

Frequently Asked Questions (FAQ)
What are the primary applications of this vacuum emulsifying mixer?
This machine is widely used in the cosmetics, pharmaceutical, food, and chemical industries for manufacturing high-quality creams, ointments, lotions, emulsions, and other viscous mixtures.
What stainless steel grades are used in construction?
The product contact parts, including the wall scraper mixer, are constructed with premium SUS316L stainless steel to ensure maximum hygiene, rust resistance, and easy cleaning.
Why is the vacuum system important during production?
The vacuum system removes air bubbles generated during the mixing process, prevents oxidization of active ingredients, and guarantees a smooth, uniform, and glossy finish to the final products.
How is temperature regulated within the emulsifying mixer?
The system features electric heating through either water or conduction oil within the jacket layer of the vessel, combined with a cooling water system to rapidly reduce batch temperatures when mixing is complete.
Is the homogenizer speed adjustable?
Yes, the high shear homogenizer features a variable speed control system, allowing operation speeds up to 3000 RPM (or 3600 RPM depending on specific configuration) to meet different product requirements.
Can the machine's mixing parameters be customized?
Absolutely. The system comes equipped with variable speed controllers for both the scraper mixer (0-65 RPM) and the high shear homogenizer, ensuring customizable processing conditions for various cosmetic formulations.
