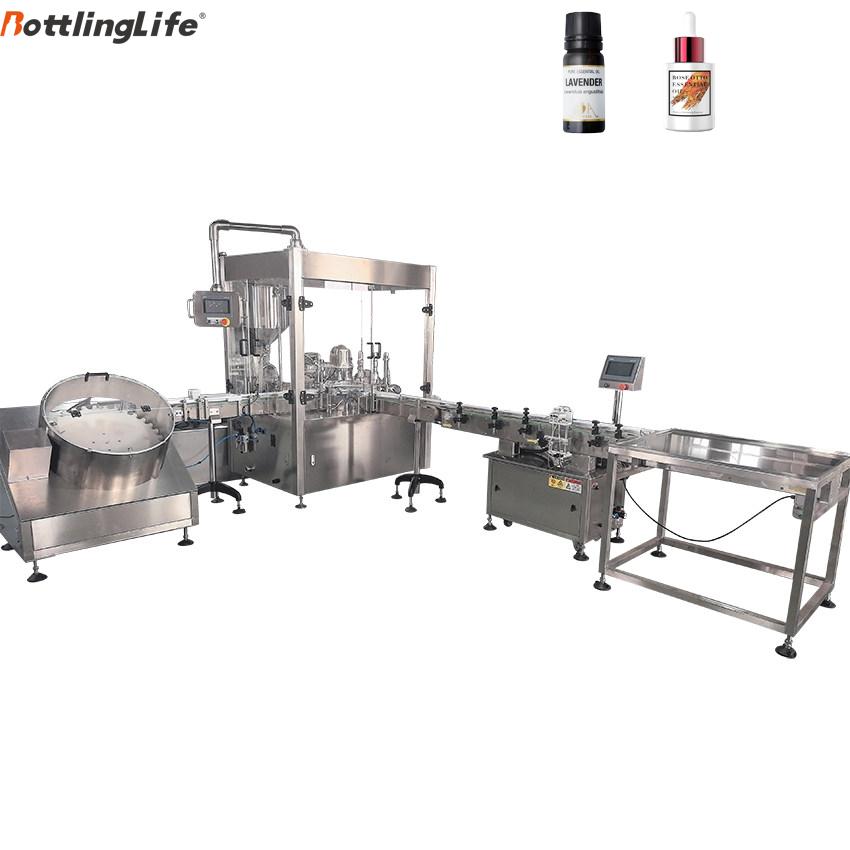

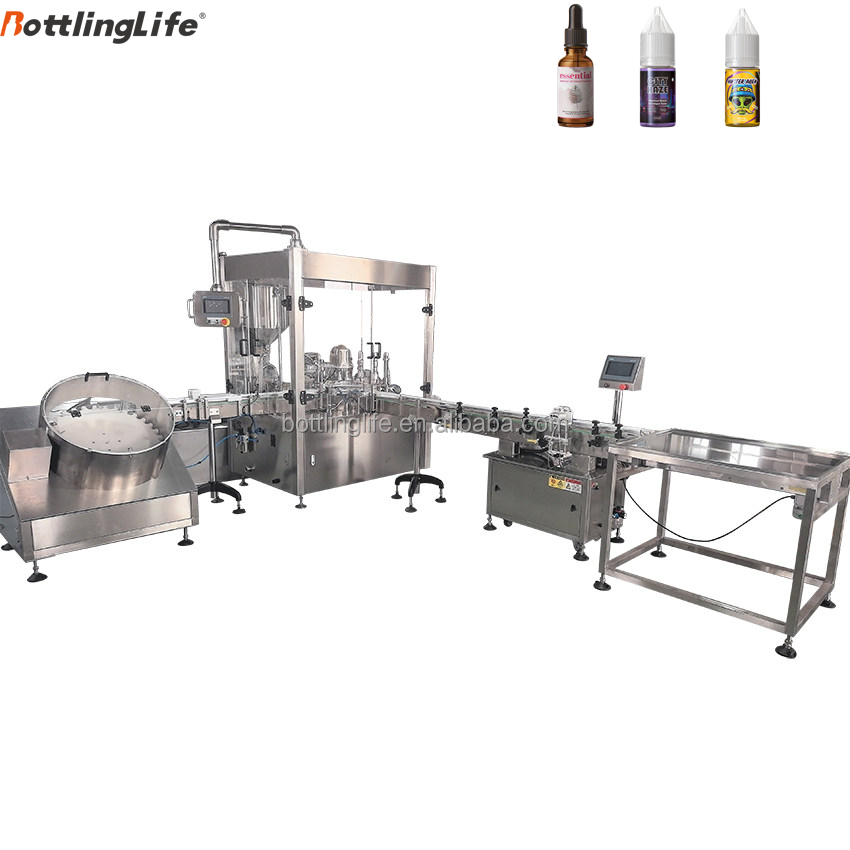

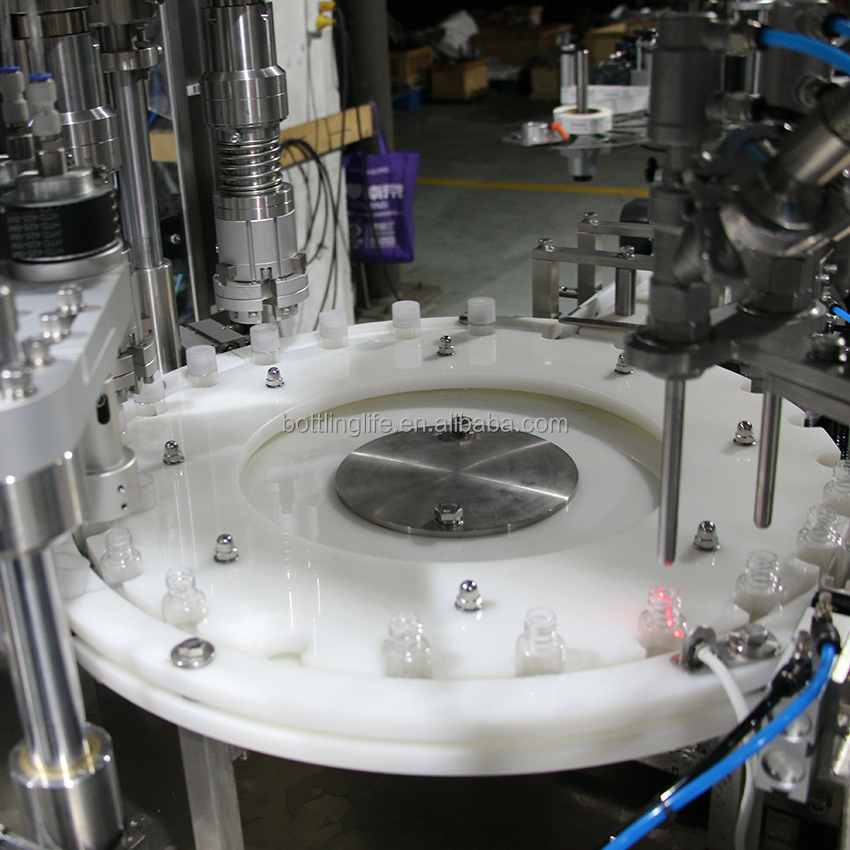

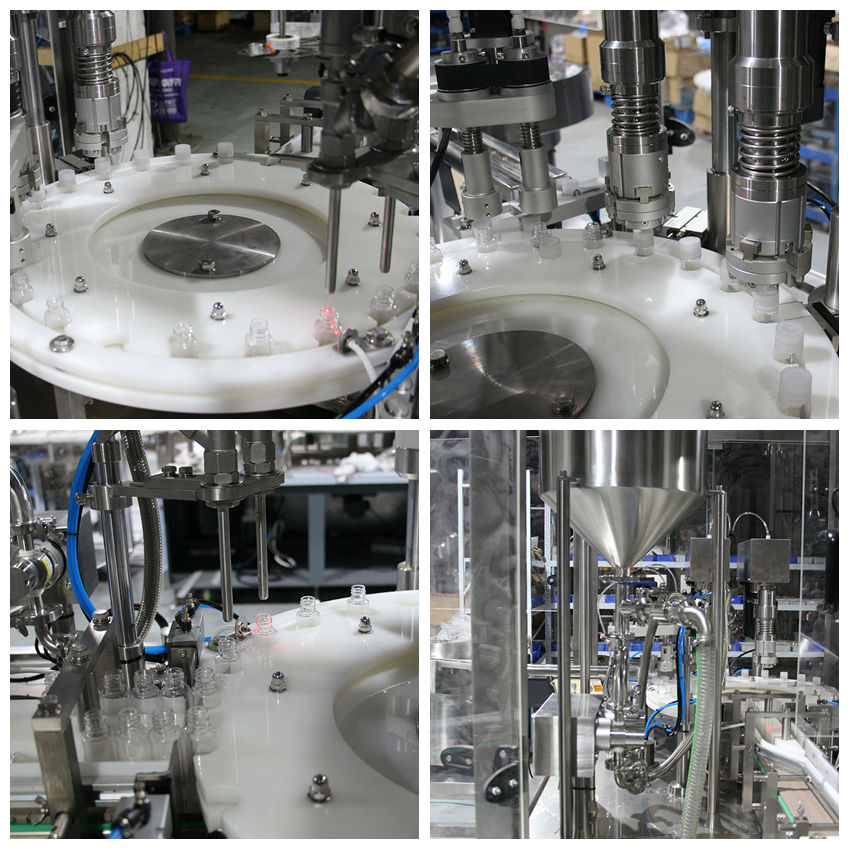

This allows the filling, screwing and labeling of bottles (essential oils, flavours, dyes, reagents...) from 10ml to 120ml in several formats. Fully automatic for large series of products with the Pick & Place system for automatic cap positioning and screw capping. Its speed can reach up to 3600 bottles/hour, i.e. 60 products/minute (for 10ml) and it can be equipped with up to 2 labeling stations. This can be equipped with an automatic bowl infeed (for full auto mode) and an independent rotary table (switch mode) for bottle infeed. It can also be equipped with a marking system on the label or on the bottom of the bottles (optional).
| Filling material | CBD Oil/Juice/Essential Oil /Nailpolish/Shampoo |
| Filling nozzle | 2/4/6 |
| Filling volume | Customized |
| Filling way | Piston pump |
| Filling speed | Customized |
| Filling precision | ±1% |
| Air consumption | 0.6~0.8MPa |
| Power Voltage | 220/380v 50/60Hz |
| Power Wattage | 1.2Kw |
| Single machine noise | ≤50dB |
| Weight | 500Kg |
| Machine size | L1600*W850*H2000mm |

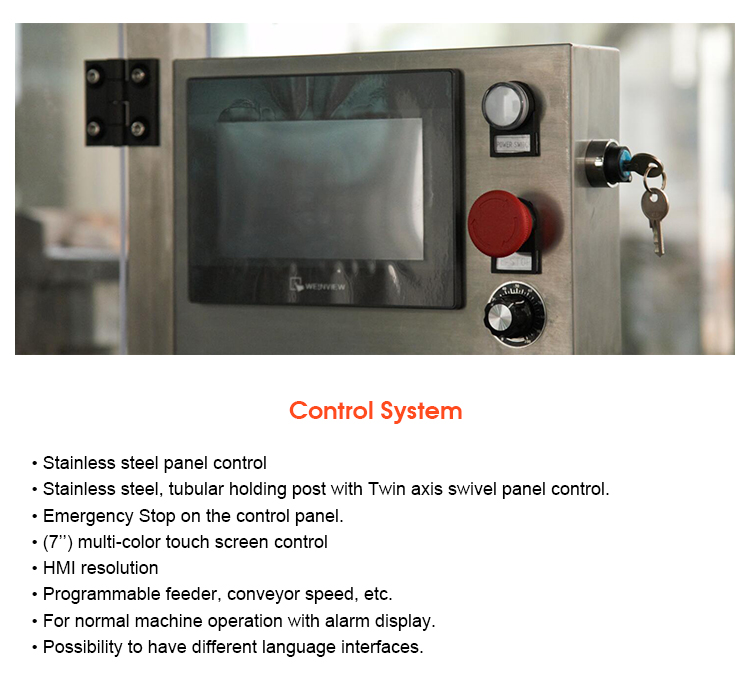

| Control | Servo motor control |

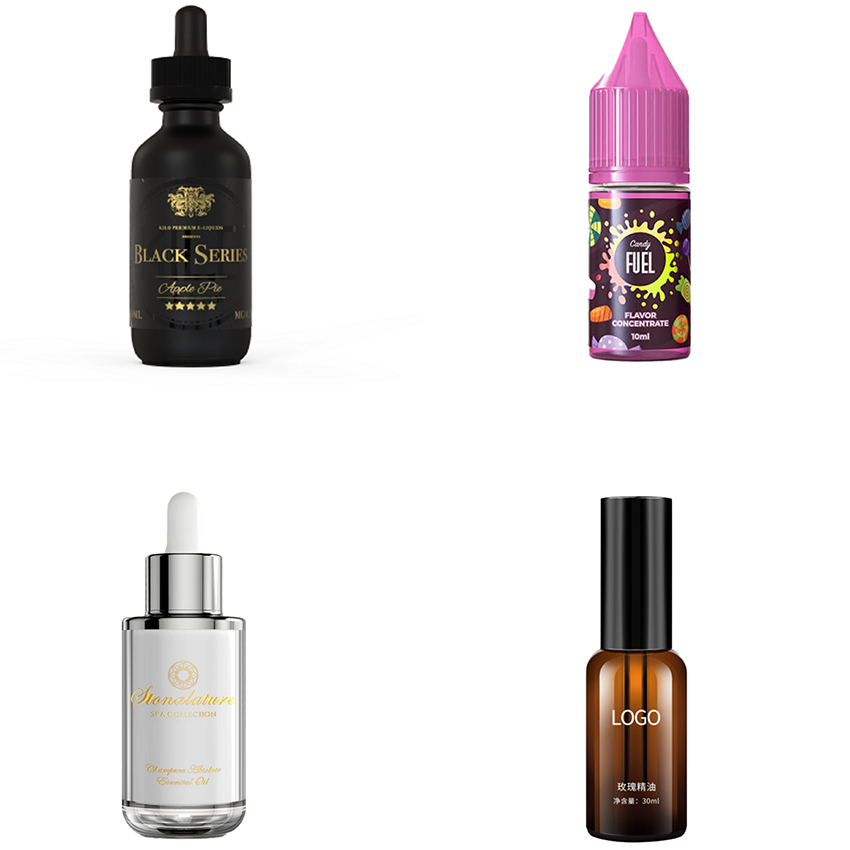

The system handles multiple bottle formats from 10ml up to 120ml. It is designed to work with various materials such as CBD Oil, Juice, Essential Oils, Flavours, Dyes, Reagents, Nail Polish, and Shampoo.

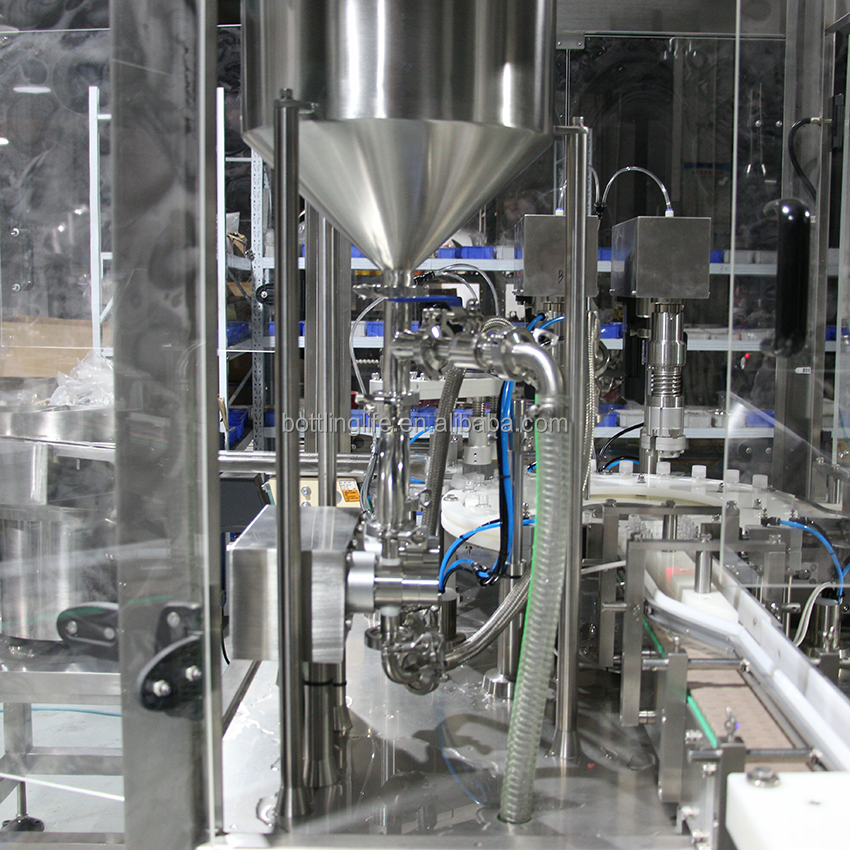

The machine offers high-precision peristaltic and piston pump options, maintaining a filling precision of within ±1% (or ±0.1ml for specific pumps). Operation speed can reach up to 3600 bottles per hour, equivalent to 60 products per minute for 10ml bottles.

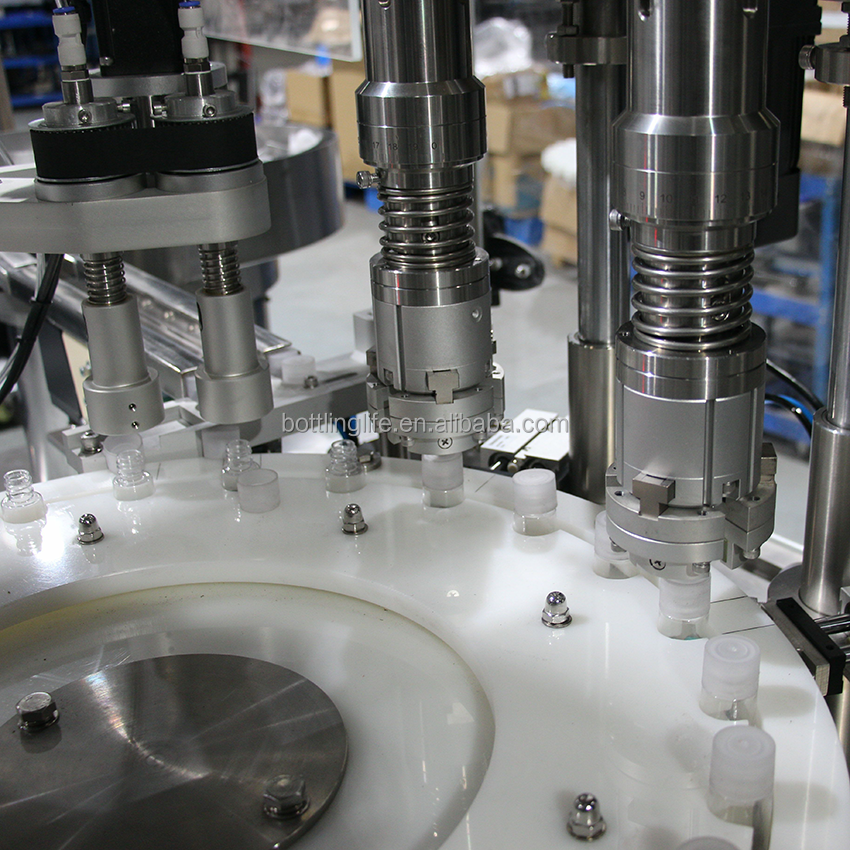

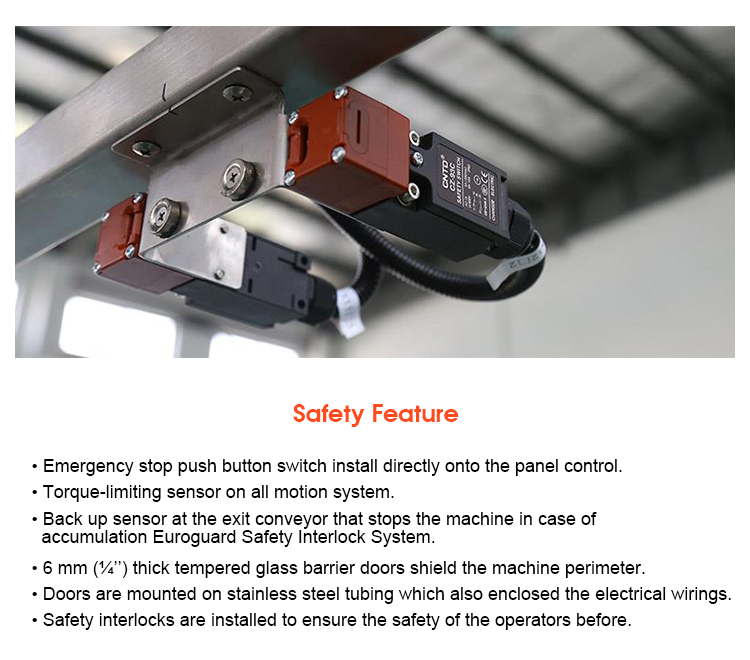

Yes, the machine features a Child Safety Cover Special Fixture. It boasts an adjustable torque range of 0.8-3.2 N·m and up to 5.0 N·m infinite adjustment to securely handle standard PE dropper caps, aluminum-plastic caps, and other CRC standard closures.
It includes a 100% online quality inspection system with dual sensor feedback: a Hall effect sensor monitoring height deviations within ±0.1mm, and a strain gauge torque gauge checking force curves. Defective products with irregular torque, angles, or seals are intercepted and removed automatically.
Absolutely. The system features a Class I Div 2 explosion-proof certification, compliant with standard oil workshop parameters, alongside a integrated static elimination device with contact resistance under 10Ω.
